Rubber flooring is the least glamorous purchase in a gym build and the one that decides whether everything else survives. A 45 lb plate dropped from lockout carries roughly 1,100 to 1,500 ft-lb of energy. That energy goes somewhere: into a rubber layer designed to dissipate it, or into your concrete slab, your subfloor joists, your barbell knurling and the ceiling of the unit below you.
This guide covers what actually drives impact absorption in gym rubber flooring, how to match thickness and density to each training zone, and how to protect the surface underneath, whether you are specifying a 6,000 sq. ft. commercial facility or finishing a garage gym in Quebec.
A note on units: gym flooring is sold in millimetres across North America, so we give thickness in inches with the millimetre equivalent every buyer will see on a spec sheet.
Two jobs, one surface: impact absorption and surface protection
Gym rubber flooring performs two distinct functions that people tend to blur together.
Impact absorption is about energy management. When a loaded barbell hits the floor, the rubber compresses, converts kinetic energy into heat and internal friction, and spreads the remaining force across a wider area over a longer time. Less peak force reaches the structure. Less shock travels back into the bar, the plates and the athlete's joints.
Surface protection is about wear. Rack feet, dumbbell handles, sled runners, machine bases and dropped kettlebells attack a floor through abrasion, point loading and gouging. A concrete slab spalls. Hardwood dents and splinters. Epoxy chips and then delaminates. Rubber absorbs that abuse as a sacrificial, replaceable layer.
A floor can be excellent at one and mediocre at the other. Soft, low-density foam absorbs impact well and destroys itself under a rack foot. Thin, hard rubber resists abrasion and transmits nearly the full shock of a deadlift straight into the slab. The right specification balances both.
What actually determines impact absorption
Density, not just thickness
Thickness gets all the attention. Density does more of the work. A 3/4 in (20 mm) mat at 56 lb/ftÂł outperforms a 1-1/4 in (30 mm) mat at 31 lb/ftÂł under repeated heavy drops, because the low-density mat bottoms out: it compresses fully and then transmits the remaining force as if it were not there.
Commercial-grade recycled rubber typically lands between 50 and 59 lb/ftÂł (800 to 950 kg/mÂł). The IRONSIDE Rubber Flooring Roll is manufactured at 56 lb/ftÂł (900 kg/mÂł) from 90% recycled rubber with 10% EPDM pigment. Anything advertised below roughly 44 lb/ftÂł (700 kg/mÂł) should be treated as a light-duty or cardio-zone product, regardless of how thick it is.
Hardness (Shore A) and the stability trade-off
Durometer, measured in Shore A, is the specification most buyers never ask about and the one that causes the most regret. Floor hardness controls two properties that pull against each other: joint protection and load stability.
Too soft, and the floor absorbs impact beautifully while your rack legs sink, your machines rock under load and your platform creeps out of square. Too hard, and equipment sits rock-solid while every rep sends shock into knees, hips and the spine.
Around 60 Shore A is the practical sweet spot for mixed-use training areas. The IRONSIDE Premium EPDM Technical Rubber Flooring is engineered at exactly 60 Shore A: compliant enough for squats and deadlifts, firm enough to keep a plate-loaded machine planted through a heavy set.
Vulcanized versus bonded
Bonded rubber is granulate held together with a polyurethane binder. It is cheaper and it works, but the binder is the failure point: over years of sweat, cleaning chemicals and freeze-thaw cycling in an unheated garage, granules release and the surface starts shedding.
Vulcanized rubber is cured under heat and pressure into a single cross-linked mass. It resists tearing, gouging and compression set far better and it holds its effective thickness over time, which is the whole point of buying impact absorption in the first place.
Drop rating
The most useful number a manufacturer can give you is a drop rating: the load a floor is validated to absorb from a given height without transmitting damaging force. As a rough guide, 3/4 in (20 mm) handles dumbbells and controlled bumper work, 1 in to 1-1/4 in (25 to 30 mm) handles serious free-weight training, and Olympic drops from overhead belong on a dedicated platform, not on tile alone.
Thickness by training zone
Specifying one thickness for an entire facility wastes money in the cardio room and under-protects the deadlift area. Zone it.
| Zone | Recommended thickness | Why |
|---|---|---|
| Cardio: treadmills, bikes, rowers | 1/4 in to 3/8 in (6 to 10 mm) | Static loads, vibration damping and surface protection only. No drop impact. |
| Machines and selectorized equipment | 5/16 in to 5/8 in (8 to 15 mm) | Weight stacks generate repeated impact but stay contained. Firmness matters more than depth. |
| Functional training, HIIT, box jumps | 5/8 in to 3/4 in (15 to 20 mm) | Landing forces, rope slams, kettlebell and medicine ball contact. |
| Free weights, dumbbells, benches | 3/4 in to 1 in (20 to 25 mm) | Regular dumbbell drops up to 100 lb and heavy rack loading. |
| Deadlift and heavy barbell zones | 1 in to 1-1/2 in (25 to 40 mm) | Full-load bar drops. This is where thin flooring cracks slabs. |
| Olympic lifting: snatch, clean and jerk | Dedicated platform | Overhead drops need a structured platform, not tile alone. |
For the heaviest zones, layering is the professional answer: a rubber base across the room, with an Olympic lifting platform or a wooden weightlifting platform set into the lifting stations.
Tiles, rolls or platforms
| Format | Best for | Trade-off |
|---|---|---|
| Interlocking tiles | Home gyms, phased builds, rented spaces, zones that get reconfigured | Visible seams; needs a flat subfloor to sit tight |
| Rolls | Large continuous areas, cardio floors, hallways, high-traffic circulation | Heavy to handle; usually glued or taped down; harder to replace one damaged section |
| Platforms | Olympic lifting and dedicated deadlift stations | Fixed footprint; higher cost per square foot |
| Turf | Sled pushes, prowler lanes, agility and mobility work | Not an impact surface; needs a rubber or shock underlay beneath |

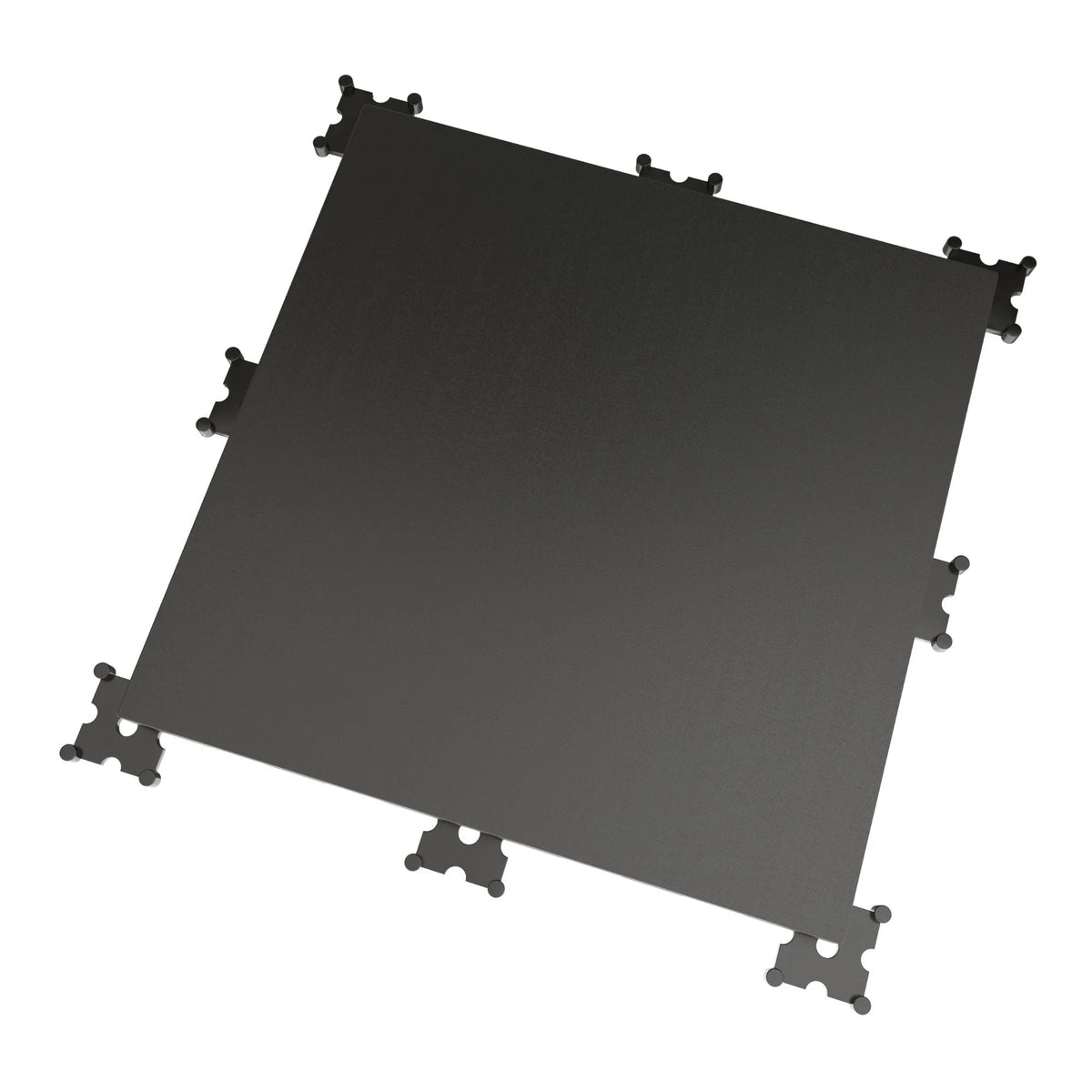

Interlocking systems have gotten considerably better. Tiles that connect with plastic connectors instead of puzzle-cut edges hold alignment under lateral load and can be lifted and reconfigured without damaging the subfloor, which matters enormously in a leased commercial unit. The IRONSIDE Interlock EPDM tile in 5/16 in (8 mm) covers cardio and machine areas, while 3/4 in (20 mm) vulcanized tiles in 3.3 x 3.3 ft or 19.7 x 19.7 in handle free-weight zones. For a continuous seam-free run, the 32 ft x 3.2 ft roll covers about 100 sq. ft. in one piece.
EPDM top layer: why the surface material matters
Many premium tiles are dual-layer: a thin EPDM wear surface bonded to a thick SBR impact base. The two materials do different jobs.
The EPDM layer, often about 1/16 in (1.5 to 2 mm), is what users touch. It is non-porous, so sweat and bacteria do not soak in, it cleans with water and mild detergent, and it holds colour under UV exposure and perspiration far better than raw SBR. The SBR base underneath, typically compacted vulcanized granulate at around 53 lb/ftÂł (0.85 g/cmÂł), does the energy absorption.
The practical consequence: a 1 in (25 mm) dual-layer tile gives you commercial-grade impact absorption and a surface that still looks presentable after three years of chalk, sweat and cleaning chemicals. Single-layer SBR at the same thickness absorbs just as well and fades, greys and sheds sooner.
If aesthetics matter for a boutique studio or a finished basement, wood-look rubber tiles deliver the same 1 in (25 mm) impact protection under a wood-pattern surface.
Protecting what is underneath
Concrete slab
Concrete is strong in compression and weak against point impact. Repeated bumper drops on bare concrete cause micro-fracturing, then spalling, then a crater that collects dust and moisture. In a garage or basement, 3/4 in to 1 in (20 to 25 mm) of high-density rubber over the lifting area is the difference between a slab that lasts and one that needs patching in year three.
Wood joists and upper floors
This is the higher-stakes case. On a suspended wood floor, dropped weight is not just a surface problem, it is a structural and acoustic one. Force travels through the subfloor into the joists and radiates as impact noise into the room below. Rubber thickness helps, but the real fix is mass plus a decoupling layer: rubber over an acoustic underlay, ideally over a platform in the drop zone. Quality acoustic underlay systems deliver meaningful impact sound reduction, and in a condo or a second-storey home gym that reduction is what keeps the peace.
Finished flooring: epoxy, tile, hardwood
Rubber protects these completely, but watch two things. First, some rubber compounds can stain light-coloured vinyl or epoxy over time; use a barrier film underneath if the finish matters. Second, moisture trapped between rubber and a sealed surface has nowhere to go, so make sure the subfloor is fully dry before installation.
Noise, vibration and Canadian conditions
Impact noise is the most common complaint in shared buildings, and it is a low-frequency problem: dropped weight produces energy in the 20 to 100 Hz range, which travels through structure rather than air. Adding drywall or foam panels does nothing. Only mass, thickness and decoupling at the floor do.
Three practical measures, in order of effect:
- Increase thickness in the drop zone specifically. Going from 5/8 in (15 mm) to 1-1/4 in (30 mm) in a 10 x 10 ft area is cheaper and more effective than upgrading the whole room.
- Add a platform. A wood-and-rubber platform spreads load across a much larger footprint and drops peak force substantially.
- Stop dropping from lockout where you can. Lowering under control from the hip removes roughly half the drop height and most of the energy.
For unheated garages in Quebec and across Canada, cold matters. Rubber stiffens below 32°F (0°C), which reduces absorption and makes tiles more brittle to handle. Install at room temperature whenever possible and let material acclimate for 24 to 48 hours before laying it. Vulcanized rubber handles freeze-thaw cycling considerably better than binder-bonded products, which is worth the price difference in any space that is not climate controlled year-round.
Installation and subfloor preparation
Most flooring failures are subfloor failures. Before anything goes down:
- Level the subfloor. Rubber conforms to what is under it. A high spot becomes a wear point and a low spot becomes a soft spot where tiles separate.
- Confirm it is dry. Test a concrete slab for moisture before covering it, especially below grade.
- Acclimate the material. 24 to 48 hours in the installation space so it reaches final dimensions before you fit it.
- Order 5 to 10% extra. Cuts around walls, columns, door swings and rack footprints consume more than people plan for.
- Choose the right fixing. Interlocking tiles in a heavy gauge can be loose-laid; their own mass holds them. Rolls under rolling loads need full-spread polyurethane adhesive or they will ripple. Double-sided tape works for light-duty rolls in low-traffic areas only.
- Start from the most visible edge. Push cut tiles toward the wall the eye notices least.
Estimating quantity and budget
Measure length by width in feet for each zone, add 5 to 10% for cuts, and specify thickness per zone rather than for the whole room. For tile-based systems, four 19.7 x 19.7 in tiles cover approximately 10.8 sq. ft.
Budget realistically by zone rather than by lowest price per square foot. A cardio room in 5/16 in (8 mm) and a deadlift zone in 1 in (25 mm) cost very different amounts per square foot, and specifying the cheap option in the heavy zone is how facilities end up replacing flooring in year two and repairing the slab underneath it.
Maintenance
Rubber flooring is close to maintenance-free if you keep to a routine. Sweep or vacuum daily in a commercial setting to remove grit, which is what actually abrades the surface. Damp mop with a pH-neutral cleaner. Avoid solvent-based cleaners, bleach and degreasers, which break down the surface and dull the finish. Address standing sweat rather than letting it sit at seams. Non-porous EPDM surfaces are the easiest to keep hygienic in high-traffic rooms.
Frequently asked questions
How thick should gym flooring be for deadlifting?
1 in (25 mm) as a working minimum over concrete, 1-1/4 in to 1-1/2 in (30 to 40 mm) or a dedicated platform for heavy pulls with regular drops from lockout. Below 3/4 in (20 mm) you are protecting the surface finish, not the structure.
Is rubber flooring enough for Olympic lifting?
Not on its own for snatches and jerks dropped from overhead. Use a structured lifting platform in those stations, with rubber flooring across the surrounding area.
Can I put rubber flooring over carpet?
Not for a lifting area. Carpet compresses unevenly under the rubber, tiles shift and racks become unstable. Pull the carpet up or install a rigid underlayment first.
Tiles or rolls for a home gym?
Tiles, in most cases. They are manageable to carry and install alone, easy to expand a zone at a time, and simple to replace individually if one gets damaged.
Will rubber flooring smell?
New rubber has an odour that fades over a few weeks with ventilation. High-quality vulcanized rubber and EPDM-topped tiles produce noticeably less than budget bonded products.
Does gym flooring stop noise for the unit below?
It reduces it substantially, but no floor eliminates low-frequency impact noise. Combine thickness, an acoustic underlay and a platform in the drop zone for the best result.
Specify the floor before you buy the equipment
The pattern we see constantly: a facility budgets carefully for racks, machines and bars, then treats flooring as whatever is left over. Two years later the slab is cracked, the tiles are shedding and the replacement cost exceeds what the correct specification would have been at the start.
Zone your space, match density and thickness to the actual loads in each area, and buy vulcanized rubber for anything that gets dropped on. Browse the full range of gym rubber flooring at IRONSIDE Fitness Canada, shipping across Canada from our Dorval, Quebec warehouse. For a commercial project, send us your floor plan and load zones and we will spec the layout with you.
